Feature:
We are making many types and many models of slitter rewinder. Please send us your basic requirements.

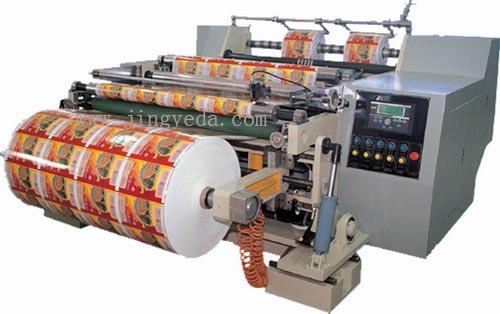

The horizontal type is designed for general use, such as BOPP, PET, CPP,CPE, PVC, aluminum foil and other web materials. Both the unwinding and rewinding employed magnetic powder brake control and linear position control. With wastage blowing off system. Usually with both slitting blades and slitting discs. Both unwinding and rewinding are using air shafts.

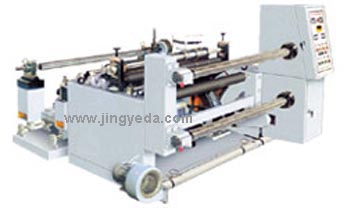

The Central Surface Rewinding design aimed mainly at paper, aluminum foil, PVC, etc. The key advantage is sharp rewinding.
Technical Parameter:
|
Model |
Horizontal 1100 |
Central Surface 600/ |
|
Unwind diameter |
D |
D |
|
Rewind diameter |
D |
D |
|
Web width |
700, |
|
|
Slit width |
20 |
|
|
Speed |
5 |
5 |
|
Accuracy |
+/- |
+/- |
|
Total power |
3kw |
2.2 kw |
|
Weight |
|
|
|
Dimensions (L/W/H) |
1300*2100*1500 (1100)mm |
2000x1300 x |
