Feature:

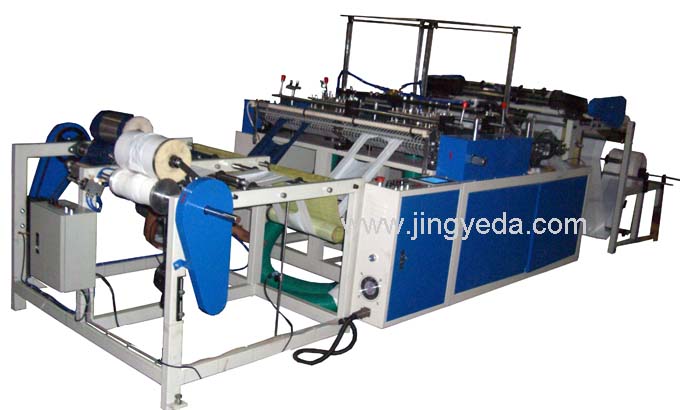

It is specially designed for automatic perforated T-shirt bag on roll making. Double lane. Double Japanese Yaskawa servo motors driving. Taiwan Tverter V. F. drive for speed regulation. Double photocells. Double independent accurate die-cut moulds. So easy and accurate job.
Key technical parameter:
Unwind diameter:600 mm, Max. film widt: 400 mm
Servo motor: 1.5 kw x 2 sets Driving motor: 1.5kw + V. F. drive
Unwind motor: DC300w x 2 sets. Rewind motor: DC 300w x 2 sets
Normal bag width: 350 mm. Bag making speed: 140 pcs/ min x 2
Weight: 2000 kg Dimensions: 5100 x 1600 x 1500 mm
