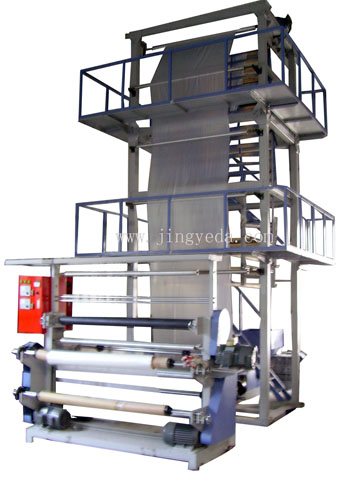

PE Film Extrusion Machine

Time: 2008-08-21 Click：1308 【Font-size：Big Middle Small】

Feature:
This machine is mainly for extrusion and blowing of HDPE, LDPE and LLDPE. Our standard design is with fully rotational die and 2-layer rotational air ring. Central winding station. V. F. drive for speed regulation. With gusset folder. With both smooth and emboss rollers.

Technical parameter:

Model	SJM-35D	SJM-45D	SJM-55D	SJM-65D	SJM-65D	SJM-80D	SJM-100D	SJM-120D
Size	D35 x500	D45 x700	D55 x1000	D65 x1200	D65 x1500	D80 x1800	D80 x2000	D120 x2500
Max. film width	LDPE 450	LDPE 680 HDPE 680	LDPE 980 HDPE 980	LDPE 1180 HDPE 1180	LDPE 1400 ?	LDPE 1700	LDPE 2100	LDPE 2500
Material	LDPE, LLDPE, HDPE
Thickness	0.01-0.10	0.01-0.15	0.01-0.20	0.01-0.20	0.01-0.20	0.01-0.20	0.01-0.30	0.01-0.30
Production kg/h	18	30HDPE 40LDPE	45HDPE 55LDPE	55HDPE 60LDPE	70HDPE 80LDPE	90HDPE 110LDPE	150 LDPE	160 LDPE
Screw dia mm	35	45	55	65	65	80	100	120
Screw	30:1	30:1	30:1	30:1	30:1	30:1	30:1	30:1
Haul roller	150x 500	150x 700	150x 1000	150x 1200	150x 1500	200x 1800	200x 2200	200x 2600
Temperature point	4	4	5	6	7	8	8	8
Main motor kw	7.5/4	11/4	15/4	22/4	22/6	30/4	37/4	37/4
Haul motor kw	0.75	1.5	1.5	2.2	2.2	2.2	2.2	3.7
Haul speed	0－30	0－30	0－30	0－30	0－30	0－30	0－30	0－30
Cool fan kw	1.1	1.1	2.2	2.2	2.2	3.7	3.7	3.7
Wind dia mm	400	550	550	500	300	300	300	300
Wind torque	30	40	40	60	100	120	150	150
Dimensions	3000x 1500 x3400	3750x 1800 x3450	3750x 2050 x3500	3800x 2300 x3650	3850x 2570 x3700	4500x 2500 x4500	6000x2800 x6000	8000x 3400 x10000
Weight kg	1200	1500	1800	2000	2200	3200	3800	4100
