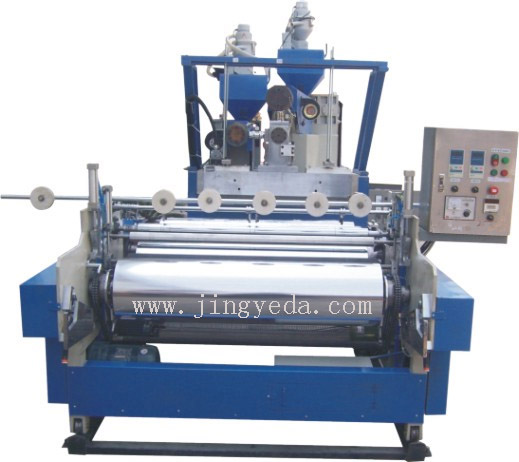

Technical parameter:
|
Model |
D65+D55 × 1250 |
D75 × 1250 |
|
Screw diameter |
65 + 55 mm |
75 mm |
|
Screw L/D |
1:30mm |
1: 30mm |
|
Screw rpm |
20-150rpm |
20-150rpm |
|
Product width |
100-1000mm |
100 -1000mm |
|
Heating power |
70kw |
48kw |
|
Product thickness |
0.008-0.5mm |
0.008 -0.5mm |
|
Production |
35-100kg |
35 -90kg |
|
Net weight |
5T |
4T |
|
Dimensions |
5200×2800×3000 |
5200×2500×3000 |
B. Manual Series
Feature:

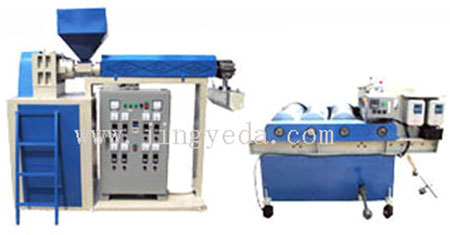

This machine is of a simple and compact design for cast PE stretch film extrusion and blowing. Thickness is by manual adjust and winding is frictional. Manual film cut off and manual web roll exchange. Simple and easy operation.
Advantage:
1. The T-die employed a unique double-flow saving design. So the film thickness is more equal.
2. Frictional winding and so the finished web roll is more tight and very nice looking.
3. Screw employed a special material mixing function for better curing. The film appearance is more equal.
4. Top automatic analogue temperature control to keep accurate temperature. Easy operation and so the plasticizing process is well controlled. The film thickness error is smaller and more smooth.
5. Film thickness is controlled by both the screw and haul speed. The haul speed is regulated by V. F. drive. Easy and reliable.
6. Cooling roller diameter 270mm.
Technical parameter:
|
Screw diameter |
D55mmx610 |
|
Screw L/d |
30:1 |
|
Screw speed |
20-150rpm |
|
Haul speed |
0-100m/min |
|
Production capacity |
15-50kg/h |
|
Film thickness |
0.014-0.5mm |
|
Total power |
20kw |
|
Product width |
20-500 |
|
Nominal drive power |
13.2kw |
|
Haul roller length |
650mm |
|
Dimensions L/W/h |
4650x1650x2900mm |

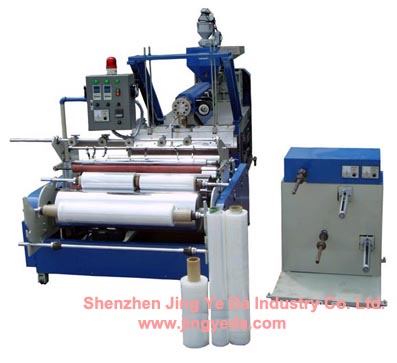

C. Semi automatic series
Movie is at http://www.tudou.com/v/WTNqNaLTel8 by Flash Player
|
Model |
D55x620 |
D90 x 1200 |
D90 x 1350 |
D55+65 x 1200 |
D55+65 x 1350 |
|
Screw Dia. |
55 mm, 38CrMoALA + nitride |
90 mm, 38CrMoALA + nitride |
90 mm, 38CrMoALA + nitride |
55+65 mm, 38CrMoALA + nitride |
55+65 mm, 38CrMoALA + nitride |
|
Screw L/Dia |
30:1 |
30:1 |
30:1 |
30:1 |
30:1 |
|
Screw RPM |
20-150 |
20-150 |
20-150 |
20-150 |
20-150 |
|
T-die width |
620 mm. |
1200 mm . |
1350 mm . |
1200 mm . |
1350 mm . |
|
Valid film width |
500 mm |
1050 mm |
1200 mm |
1050 mm |
1200 mm |
|
Assist Machn Pull |
0-100 m/min |
0-100 m/min |
0-100 m/min |
0-100 m/min |
0-100 m/min |
|
Production |
15-60 kg/h |
30-100 kg/h |
30-110 kg/h |
30-100 kg/h |
30-110 kg/h |
|
Thickness |
0.015-0.05 |
0.015-0.05 |
0.015-0.05 |
0.015-0.05 |
0.015-0.05 |
|
Heating zone |
8 |
10 |
10 |
12 |
12 |
|
Total Power |
24 kw |
66 kw |
70 kw |
95 kw |
100 kw |
|
Main motor |
13.2 kw |
34.4 kw |
45 kw |
22 + 11 kw |
22 + 11 kw |
|
Weight |
2500 kg |
3500 kg |
4000 kg |
4000 kg |
4500 kg |
|
Pull roller |
D85 x 620 mm |
D270 x 1100 mm |
D270 x 1300 mm |
D270 x 1100 mm |
D270 x 1300 mm |
|
Cooling roller |
D245 x 620 mm |
D345 x 1100 mm with internal water circulation |
D345 x 1300 mm with internal water circulation |
D345 x 1100 mm with internal water circulation |
D345 x 1300 mm with internal water circulation |
|
Frictional wind roller |
D245 x 620 mm |
D320 x 1100 mm |
D320 x 1300 mm |
D320 x 1100 mm |
D320 x 1300 mm |
|
Cut off |
Semi automatic. Hot wire cutting off with push button control and with meter counter. Manual roll take away. |
||||
|
Wastage winder |
Independent. 15 kg torque motor |
Independent. 30 kg torque motor |
Independent. 30 kg torque motor |
Independent. 30 kg torque motor |
Independent. 30 kg torque motor |
|
Install Dimensions. (L/W/H) |
4,800x1,650 |
5.0 x 1.7 x 2.6 m |
3.2 x 1.7 x 2.6 m |
5.0 x 2.20 x 2.6 m |
5.0 x 2.20 x 2.6 m |
