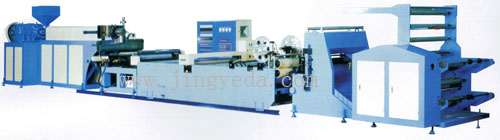

Stationery PP Sheet Extrusion Line

Time: 2008-08-21 Click：【Font-size：Big Middle Small】

(Click for movie by Flash Player)

Features:

Technical parameters:

Model

1100

Product width

1100 mm

Product thickness

0.12-1.5 mm

Extrude qty

80-200 kg/h

Extrude motor

37 kw

Screw dia.

120 mm

L/Dia.

32:1

Emboss motor

2.2/3.7 kw

Emboss roller

D350 mm

Valid winding

1200 x 4 pcs

Sheeting width

1200 mm

Total power

abt.100 kw

Weight

1500 kg

Dimensions

13500x2500 x 1600 mm

Power source

VAC 380 +/- 10% or as requested.

1. Cabinet: Only top components that fulfill safety requirements are used. Space saving. Easy operation.
2. Screw employed a high curing design with special blending function. With imported static blender to insure good melt and better extrude quantity.
3. T-die employed a special double flow saving design to make sheet thickness alignment more accurate.
4. Temperature control system is supplied by Japan OMRON. Temperature accuracy is within +/- 1 degree. This is to insure curing process, sheet thickness and smoothness.
5. Emboss and forming bench may freely lift so as to supply more choices during production of thick and thin sheet. With 2 independent kalander motors.
6. Sheet thickness adjustment is by screw and press roller for bi-directional adjustment to insure precisely control the sheet thickness.
7. Emboss roller dia. 350 mm and double-loop cooling system with the micro computerized simulant temperature controller are to precisely control the emboss roller’s temperature, make the sheet smooth and same thick.
8. PLC control. Precisely control the sheet length and quantity.
9. Winding station: employed top moment motors to incorporate with the 4-shaft tension control system. It may freely adjust the winding speed and tension so as to insure smooth and tidy winding. With the slitting device, you may freely set product width. It is with an automatic meter counter to set product quantity.

【Back】

Model	1100	Product width	1100 mm
Product thickness	0.12-1.5 mm	Extrude qty	80-200 kg/h
Extrude motor	37 kw	Screw dia.	120 mm
L/Dia.	32:1	Emboss motor	2.2/3.7 kw
Emboss roller	D350 mm	Valid winding	1200 x 4 pcs
Sheeting width	1200 mm	Total power	abt.100 kw
Weight	1500 kg	Dimensions	13500x2500 x 1600 mm
Power source	VAC 380 +/- 10% or as requested.
