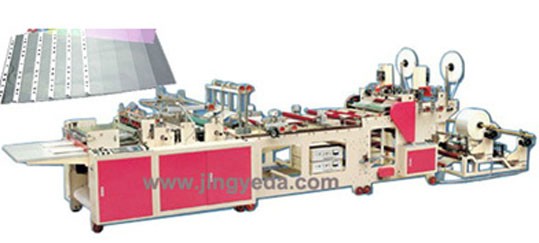

File Bag Making Machine

Time: 2008-08-21 Click£º  ¡¾Font-size£ºBig Middle Small¡¿




(Click for movie by Flash Player)

Technical parameters:

Basic specification

Model

LR-600

LR-600D

Applied material

PE, PP

PE, PP

Valid bag length

500mm

500 mm

Valid bag width

560mm

560 mm

Accuracy

0.5mm

0.5 mm

Production

60 -120 pcs/min

Power supply

AC 220V or 380V+10%HZ

Total power

5.5Kw

Unwind frame

Method

Single work conic tightening type + LPC devices.

Roll diameter

500mm

Tension method

Machanical friction type magnetic brake.

Feeding method

DC timing,tension adjustable manipulator for feeding

Machine power

Main motor

1.5 KW V. F. drive for speed control.

Transmission method

Electric mechanical speed control.

Length control method

haul length control system

Servo motor + computer control + liquid crystal display

Optional

Logo bronzer

by supplier

Ultrasonic emboss unit

By supplier

Punch function

Special punch molds.
7L die of double-lane


Functions and features:
As the indispensable equipment in making file bags, this machine is applied to office stationery. It is a perfect combination of multiple functions with top domestic and overseas technology.It is a brand new invention in whole China.It is an integration of mechanism,electricity and photoelectricity.Main control units: servo motor driving, computer control, liquid crystal display.Equipped with automatic EPC, V.F. drive speed regulation, ultrasonic fluting and embossing,hot cutting decoration,pneumatic punching,automatic temperature control, controlled tension and speed regulation during feeding, automatic counting and repeating counting, static elimination,etc. Since its invention,it is widely welcomed by users and it is the top choice to replace import.
The original material is PP film or PP sheet, embossed or smooth. All related equipment for finished file bag making are available in our own product range. The pearlite tape is usually bought from the market.
Key configuration:
1) 11-hole puncher: 1 / 2 sets. 2) Dot sealing knife: 1 / 2 sets
3) Cold cutting knife: 1 / 2 sets. 4) Ultrasonic welder: 1 / 2 sets
5) Strip unwinder: 1 / 2 sets. 6) Automatic unwinding edge position control: 1 / 2 sets
(1 set is for single lane and 2 sets for double-lane)
