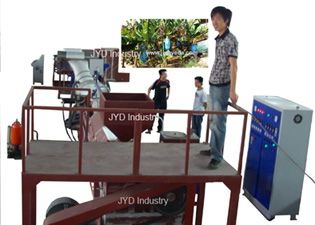

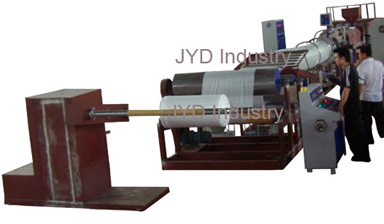

PE Foam Banana Bag Extrusion Line
Feature and application:
PE Foam Banana Bag Extrusion Line is basically our standard sheet extrusion design + a compressed air filling system. No slitting. Winding is by folded way. Just like the theory of Film Blowing Machine.
PE Foam Banana Bag Extrusion Line for tubular EPE banana bag extrusion or blowing.ECO friendly. Of single extruder. By direct butane or LPG foaming. Micro cell is of closed none crosslink type
So the added price is very litter and a small air compressor is included. The popular width range is 700 - 1000 mm at thickness of 0.25 - 0.8 mm.
So we often give design for both open sheet and tubular sheet.
|
Screw dia
|
Screw L/D
|
Screw rpm
|
Cooling
|
Total power
|
Foam times
|
|
90mm
|
55: 1
|
20-80
|
water+ air
|
130 kw
|
20-55
|
|
Thickness
|
F. width
|
Capacity
|
Weight
|
Power supply
|
Dimensions
|
|
0.25-1.5 mm
|
700-1,000 mm
|
70-100 kg
|
7T
|
60 Kw,380V
|
22,000x2,300x2,200
|
|
Screw dia
|
Screw L/D
|
Screw rpm
|
Coolling
|
Total power
|
Foam times
|
|
105 mm
|
52: 1
|
20-80
|
Water + air
|
150 kw
|
20-55
|
|
Thickness
|
F. width
|
Capacity
|
Weight
|
Power supply
|
Dimensions
|
|
0.25-1.5 mm
|
700-10,00 mm
|
80-120 kg
|
7.5 T
|
80 Kw,380·ü
|
23000x2500x2200
|
