Features:

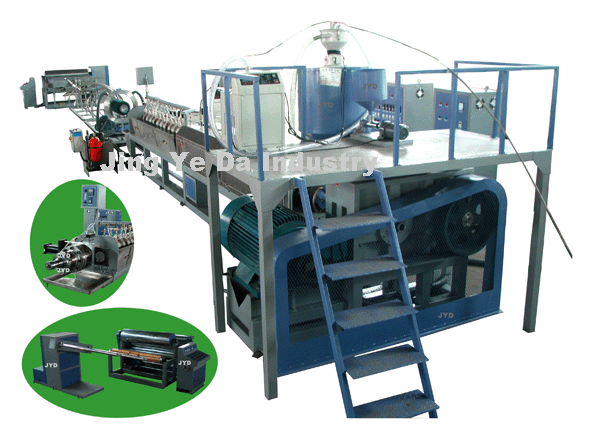

PE foam sheet extrusion line for EPE and NPE foam sheet, with a patented foaming amplifier.Of simple single extruder by direct butane or LPG gas inejection. Of closed cell and none crosslink structure. The foam is ECO friendly.
* Jing Ye Da Industry is a PE foam plant solution specialist. Our PE Foam Sheet extrusion Line is with a Patented Foaming Amplifier to insure better foaming. The product density is average 2 - 3 kg / cbm lower than popular Chinese EPE machine's. Min. 15.5 kg/cbm and max. 95 kg/cbm. We may guarantee average density of 16.5 kg/cubic meter after bonding. It is for EPE and NPE foam sheet production.
(Click for movie by Flash Player.)
* Both butane or LPG may be the foaming agent.
* V.F driving for speed regulation. Single screw with independent heating zones to insure easy operation, easy trouble shooting, precise heating and curing.
* With temperature control system. Stable and reliable.
* Circulation water cooling. (Water tower, user to add)
* The head employed automatic screen exchange system (with a hydraulic station) to save time and reduce wastage. About 30% may be saved.
* Fool’s design: Head pressure and temperature control employed digital display and a septum pressure gage. The two systems insure stable top sheet quality.
* Winder may overturn automatically. With meter counter for length pre-setting. Winding width is adjustable.
* High foaming times. Imported temperature control system.
Applications:
* Our PE Foam Factory Solution includes nearly all machinery for PE foam sheets, profile and PE fruit net.
* Electronic industry: Cushion packaging protection packaging against delicate
* electronic products like video, audio and component parts requiring shock absorbing.
* Export Sports: Vibration dampening mattress for sports purpose, cushioning, soundproof moisture proof effect at construction business.
* Furniture packaging, 5-metal, other industrial packaging and export packaging.If you want to, you may add master batch for different colors.
Technical parameter
| Model | JYD75 | JYD90 | JYD105 | JYD120 | JYD135 | JYD150 | JYD170 | JYD180 | JYD200 | JYD220 | JYD250 |
| Screw dia | 75 mm | 90 mm | 105 mm | 120 mm | 135 mm | 150 mm | 170 mm | 180 mm | 200 mm | 220mm | 250mm |
| Screw L/D | 60:1 | 55:1 | 52:1 | 55:1 | 52:1 | 52:1 | 55:1 | 55:1 | 55:1 | 55:1 | 55:1 |
| Capacity | 20 -35 kg/h | 80-120 | 100-150 | 120-220 | 140-250 | 250-400 | 300-500 | 300-500 | 300-600 | 450-750 | 450-750 |
| Thickness | Profile | 0.3 - 3.5mm | 0.5-6.5 | 0.5-9.0 | 2-15 | 2-20 | 2-25 | 3-25 | 4-25 | 5-22 | 5-22 |
| Width | Profile | 800-1500mm | 900-1600 | 900-1600 | 1000-1900 | 1000-2000 | 1000-2500 | 1000-2500 | 1000-2500 | 900-3000 | 1100-3000 |
| F times | 20-45 | 20-55 | 20-55 | 20-55 | 20-55 | 20-55 | 20-55 | 20-55 | 20-55 | 20-55 | 20-55 |
| Cooling | Watercooling + air cooling | ||||||||||
| Power/ Supply |
80kw/ 40kw |
130 kw/ 45 kw |
150kw/ 60kw |
180kw/ 75kw |
210 kw/ 100 kw |
230kw/ 100 kw |
260kw/ 110 kw |
350kw/ 120kw | 300 kw/ 160 kw |
452kw/ 250kw | 510kw/ 250kw |
| Rotation | 20 - 80 RPM | ||||||||||
| Dimensions L/W/H |
8000x 1500x1800 | 22000x 2300x2200 |
25000x 2500x2200 |
27000x 2500x2200 | 28000x 2700x2300 | 30000x 2800x2200 | 33000x 2800x2800 | 36000x 2500x2800 | 40000x 3000x2800 | 45000x 2800x2300 | 45000x 2800x2300 |
| Weight | 4.5T | 6.5T | 7.0T | 9T | 13T | 14T | 18T | 20T | 22T | 25T | 28T |
