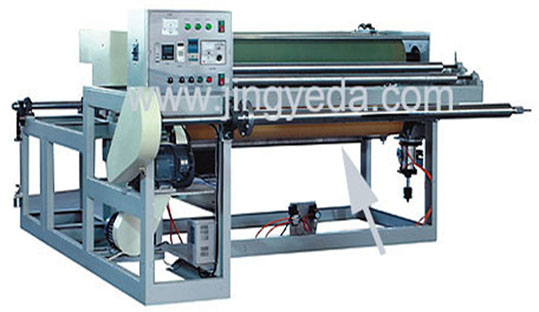

PE Foam Laminating Machine
Feature and application:
PE Foam Laminating Machine is to thermo laminating web plastic film, aluminum or kraft paper onto PE foam. The heating method is Teflon roller + oil electrical heating.
Our coating machine has 2 key advantages:
1) With banana roller and so the winding is of better quality.
2) Inline slitting blades may easily add for you. Please remember to remind us if needed.
Technical parameter:
|
Model
|
FF-FM-1450
|
FF-FM-1750
|
FF-FM-2050
|
FF-FM-2250
|
|
Film thickness
|
0.01-0.05
|
0.01-0.05
|
0.01-0.05
|
0.01-0.05
|
|
Max. valid width
|
1,300
|
1,600
|
1,900
|
2,100
|
|
Heating method
|
Oil + electricity
|
Oil + electricity
|
Oil + electricity
|
Oil + electricity
|
|
Standard emboss
|
2x2mm square
|
2x2mm square
|
2x2mm square
|
2x 2mm square
|
|
Main motor
|
2.2kw
|
2.2kw
|
3.7kw
|
3.7kw
|
|
Heating tube
|
D19x1450
|
D19x1750
|
D19x2050
|
D19x2250
|
|
Total power
|
18kw
|
18kw
|
22kw
|
22kw
|
|
Pull speed
|
0-30m/min
|
0-30m/min
|
0-30m/min
|
0-30m/min
|
|
Dimensions
|
6000x2500x1800
|
600032800x1800
|
6000x3100x1800
|
6000x3300x1800
|
|
Weight
|
1.0 T
|
1.2T
|
1.4T
|
1.6T
|
