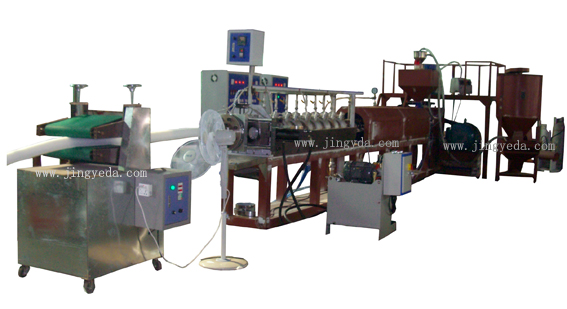

PE Foam Profile Extrusion Line

Time: 2008-08-21 Click：【Font-size：Big Middle Small】

PE Foam Profile Extrusion Line

Feature:

PE Foam Profile Extrusion Line's extruder is absolutely the one of PE Foam Sheet Extrusion Line. As per your profile sizes, you may choose an extruder of diameter 75, 90,120, 135 or even up to 150 or 180 mm.

IF your typical extruder is too big, gives too much material, you may extrude multiple solid rods simultaneuously. However multiple pieces only applicable to solid rods at the moment.

In comparison to sheet extrusion line, the assistant units are different. You will have to add.

Technical parameter of JYD75 Profile Extrder

Screw D	Screw L/D	Screw RPM	Foam times	Capacity	Main motor
D75 mm	55:1	20-80 rpm	20-55	20-35kg/h	22 kw
Total power	Haul speed	Length control	Conveyer discharge	Dimensions
55 kw	V.F. drive	auto	Slip down	16,000x 1,500 x 1,800 L/W/H

Auto Profile Making Stations

1. Mould: 3 popular standard moulds are included. If special ones, we reserve the freedom and rights to add extra costs.

2. Cooling: 1 blower of 0.75kw + 1 air ring.

3. Haul Station:
3.1.Haul unit: 1 set. Power consumption: 1.5 KW each.
3.2. Motor speed control: V.F. drive.
3.3. Belt system: 2 units.

4. Automatic Cutter and Conveyer station

4.1 Cutter: 1 piece installed

4.2 Max. tube/rod diameter: 90 mm

4.3 Cutting magnetic motor: 0.55 kw + magnetic regulation

4.4 Conveyer AC motor: 1.5 kw + 1.5 kw V. F. drive

4.5 With push button of JOG/Auto Run.

4.6 With meter counter and piece counter. You may preset the cut length.

4.7 Dimensions: (3820 + 550) x 680 x 1100 mm, L/W/H

4.8 Weight: 400 kg
